In the evolving landscape of industrial automation, 3D vision technology has emerged as a critical enabler for smarter, more flexible manufacturing systems. While traditional 2D machine vision continues to play a role in many applications, its lack of depth perception limits its capabilities in scenarios requiring volumetric assessment, spatial awareness, or complex surface analysis. By contrast, 3D vision systems offer a more complete understanding of the physical world—enhancing quality control, robotic guidance, and adaptive process management.
This article explores 3D vision technologies used in manufacturing, typical application areas, integration challenges, and future trends.
From 2D to 3D: Why Depth Matters
2D systems capture flat images, which are effective for tasks like barcode reading or simple presence checks. However, they struggle with:
- Accurate height or volume measurements
- Identifying parts in varying orientations
- Surface topology or texture analysis
- Operating in dynamic, less-controlled environments
3D vision technologies overcome these limitations by providing spatial information across all three axes. With true depth data, manufacturers can:
- Quantify volume, depth, and shape directly
- Detect surface irregularities in fine detail
- Guide robots with positional flexibility
- Analyze assemblies regardless of part orientation
The rise of affordable 3D sensors, faster processors, and smarter algorithms has made these systems more viable for routine use—even outside of high-end production lines.
Core 3D Vision Technologies in Manufacturing
Different 3D imaging techniques have emerged to address specific industrial needs. The most common include:
Laser Triangulation
Projects a laser line onto the object and uses angle-based calculations to map surface height.
Applications:
- Weld seam analysis
- Gap & flush measurement in automotive panels
- Profile and edge verification
Strengths: High precision, stable under varying lighting
Limitations: Struggles with reflective or transparent materials; requires motion for full scans
Structured Light
Projects a known pattern (grid or stripes) and analyzes its deformation to reconstruct 3D shapes.
Applications:
- CAD comparison for molded or cast parts
- Surface defect detection
- Assembly validation in medical or electronics industries
Strengths: High-resolution scans, fast data capture
Limitations: Sensitive to ambient light; higher computing demands
Stereo Vision
Uses two offset cameras to replicate human depth perception via parallax.
Applications:
- Random bin picking
- Dynamic object tracking
- Robot guidance
Strengths: No active illumination required; good for texture-rich or colored parts
Limitations: Lower depth precision; complex calibration
Time-of-Flight (ToF)
Measures the time it takes for light to bounce back from an object to calculate distances.
Applications:
- Package volume measurement
- Collision avoidance in logistics robots
- Presence checks in assemblies
Strengths: Fast, wide-field acquisition
Limitations: Lower resolution; sensitive to reflective interference

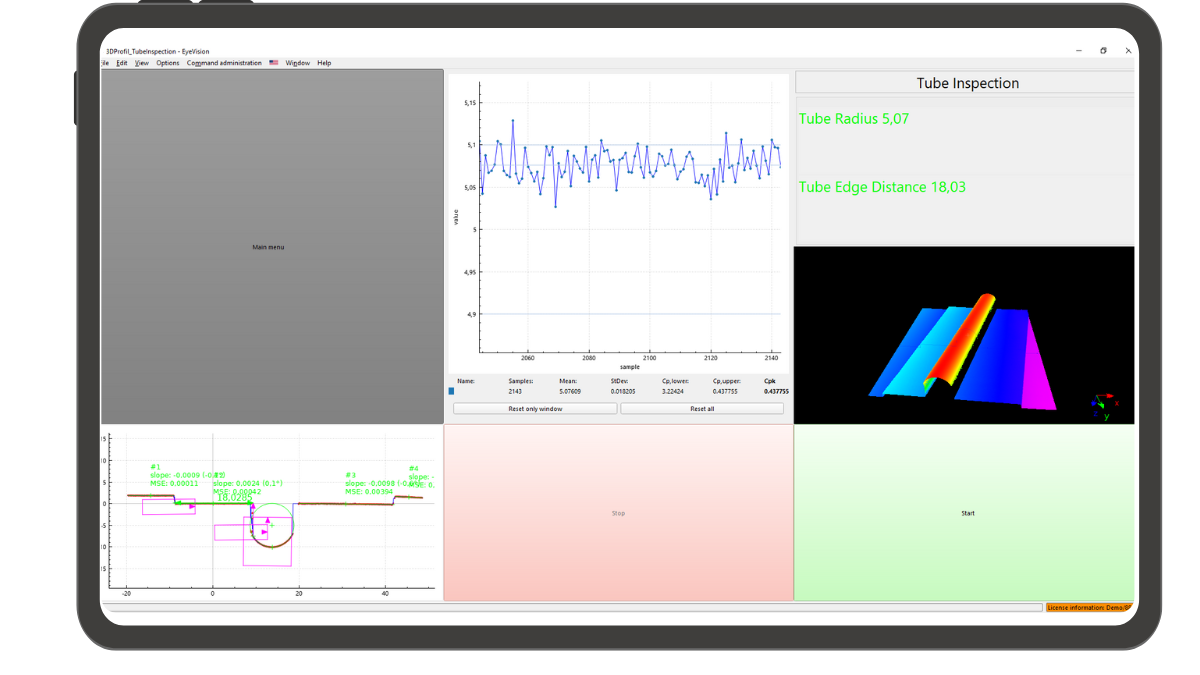

Modern systems like EyeVision Software support multiple 3D sensing modalities—offering flexibility when integrating into diverse production environments.
Real-World Use Cases in Manufacturing
Dimensional Inspection
3D vision allows direct comparison of parts against CAD models, enabling precise verification of tolerances, warping, or assembly geometry.
Example: An automotive supplier uses structured light to inspect plastic components, detecting sub-millimeter deviations in seconds.
Surface Quality Evaluation
Topographic scans can detect dents, scratches, and subtle defects invisible to 2D systems.
Example: A metal forming line applies laser triangulation to inspect every part inline, reducing defect-related waste.
Robot Guidance
Bin picking, position correction, and complex path planning all rely on spatial data.
Example: A robot with an integrated 3D scanner autonomously loads machining centers, increasing uptime and reducing manual handling.
Assembly Verification
3D inspection ensures not just that parts are present, but that they’re correctly seated and aligned.
Example: In medical device production, 3D vision verifies dozens of critical assembly points per unit—ensuring regulatory compliance.
Overcoming Implementation Challenges
Despite its advantages, deploying 3D vision in production involves challenges:
- Data Volume: 3D point clouds are dense; optimized processing (often via GPU or edge computing) is essential
- Environmental Variability: Dust, vibration, and uncontrolled lighting require robust hardware and calibration routines
- Material Sensitivity: Transparent, reflective, or dark surfaces may need compensation techniques like polarization filters or adaptive lighting
- System Integration: Seamless communication with PLCs, motion systems, and MES software is key for inline applications
Advanced 3D systems, such as those integrated through platforms like EyeVision, address these needs with modular toolkits and prebuilt communication protocols (e.g. GigE Vision, OPC UA).
Future Direction
The evolution of 3D vision is closely linked to other technological shifts:
- AI Integration: Neural networks enable defect classification, anomaly detection, and adaptive inspection with less rule-based programming
- Real-Time 3D: Faster sensors and optimized processing allow full 3D scans at production line speeds
- Multispectral Fusion: Combining geometry with spectral analysis opens new possibilities in material identification or contamination detection
- Miniaturization: Embedded and robot-mounted 3D sensors expand use cases, especially in constrained environments or mobile robotics
As 3D vision systems become faster, smarter, and more versatile, their role in digital manufacturing will only deepen.
Conclusion: A Clearer View of Quality and Efficiency
3D vision offers a significant leap forward in how machines perceive the physical world. With accurate depth data, manufacturers can automate complex tasks, catch hard-to-find defects, and guide robots with confidence—driving improvements in quality, speed, and flexibility.
For companies embracing smart manufacturing, 3D vision is no longer a luxury—it’s becoming an essential foundation for next-generation production.
