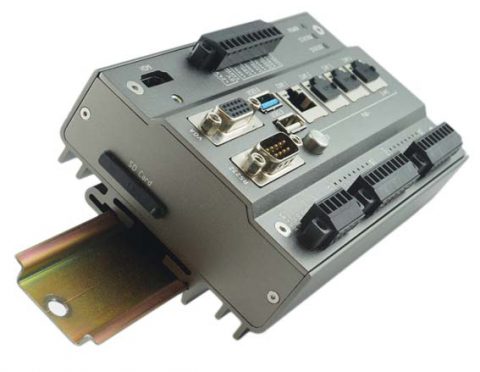

EmSys Machine Vision Computer

EmSys Machine Vision Computer is flexible with many interfaces, I/Os and a VGA port. The compact industrial computer turns into EmSens image processing system when combined with the EyeVision Software, complete with industrial cameras.

EmSys Machine Vision Computer Features

  • Intel ATOM Quad Core 1.91 GHz
  • 4 GB DRAM, 64 GB storage for OS
  • 64-bit Operating System: Windows 10, Ubuntu 16.04
  • HDMI and VGA Display Port
  • 4 GigE camera interface with PoE+ Support
  • 8 digital Inputs and 8 digital Outputs
  • DIN-rail mounting, fanless
  • operating temperature: -40 °C to +80 °C

Technical Data

CPU ModelIntel ATOM SoC E3845
CPU Type1.91 GHz, Quad Cores, 2 MB L2 Cache, 64-bit
DRAM4 GB DR3L-1333 (soldered onboard)
Storage64 GB eMMC5.1 Flash for OS  1x SDXC card slot for extendes storage up to 2 TB
Operating SystemWindows 10 IoT Enterprise, Windows 10 IoT Core, Ubuntu 16.04
Camera Interfaces4x GigE camera interfaces with PoE+ support
USB Interfaces1x USB 3.0, 1x USB 2.0   1x internal USB Port for Dongle
Serial Port1x RS232 (TX and RX only), 1x isolated RS485
Digital I/O8 digital Inputs, 8 digital Outputs    Support 5V/12V/24V input
Watchdog Timer1 to 256 Sekunden, Setup by Software
Display Port1x HDMI, 1x VGA
Illumination control4x constant current LED drivers (light intensity adjustable)
Status LED3x dual color LEDs: Power, 2 user configurable
Supply Voltage20-30VDC, 24VDC recommended
Operating temperature-40°C to +80°C
ConstructionDIN-rail mounting, rugged full metal casing, fanles
