EyeCheck 8000

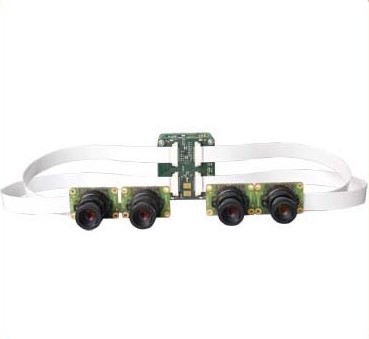

You can connect up to 4 sensor heads to the EyeCheck 8000 smart camera.
On all smart cameras runs the EyeVision image processing software.
| Sensor ID | 8 | 9 | 12 | 14 |
| Sensor Type | Aptina MT9T031 | Aptina MT9M001 | Aptina MT9V024 | Sony ICX445 |
| Technology | CMOS rolling shutter | CMOS rolling shutter | CMOS global shutter | CCD interline transfer |
| Color | ja | – | ja | ja |
| Monochrome | – | ja | ja | ja |
| Sensor size | 1/2″ | 1/2″ | 1/3″ wide | 1/3″ |
| Resolution | 2056 x 1544 | 1288 x 1032 | 754 x 480 | 1296 x 966 |
| Pixel size | 3.2 x 3.2 | 5.2 x 5.2 | 6 x 6 | 3.75 x 3.75 |
| Bit Depth | 8/10 | 8/10 | 8/10 | 8/10 |
| Sensor ID | 18 | 20 | 22 | 42 |
| Sensor Type | Aptina MT9M024 | Aptina AR0134 | CMOSIS CMV2000 | CMOSIS CMV4000 |
| Technology | CMOS rolling shutter | CMOS global shutter | CMOS global shutter | CMOS global shutter |
| Color | ja | ja | ja | ja |
| Monochrome | ja | ja | ja | ja |
| Sensor size | 1/3″ | 1/3″ | 1/3″ ultra wide | 1″ |
| Resolution | 1280 x 960 | 1280 x 960 | 2048 x 1088 | 2048 x 2048 |
| Pixel size | 3.75 x 3.75 | 3.75 x 3.75 | 5.5 x 5.5 | 5.5 x 5.5 |
| Bit Depth | 8/10 | 8/10 | 8/10 | 8/10 |
Technical Data
| Operating System | Linux (Debian) |
| CPU | ARM Cortex-A8, 1 GHz |
| DSP | 700 MHz C674x |
| RAM | 2 GB DDR3-800 |
| FLASH Memory | 16 GB |
| SD card | yes |
| Ethernet | 1 Gbit/s |
| USB Host/ Device | yes / yes |
| GPIOs | up to 44 |
| RS232 / RS485 | yes / yes |
| SATA | yes |
| CAN Bus | yes |
| JTAG | yes |
| Real-time Clock (RTC) | yes |
| Maximum Video Resolution | 1080p |
| S-Video | yes |
| RGB888 | yes |
| HDMI | yes |
| Audio in /out | yes |
| Wake on LAN | yes |
