In the era of digital manufacturing, the ability to automate visual inspection is more than a convenience—it’s becoming a foundational requirement. Industrial machine vision enables machines to “see,” interpret, and respond to visual data from simple 2D images ot 3D point clouds and thermal images in real time. This shift is quietly transforming quality control, production efficiency, and traceability across industries. This technology bridges the gap between human visual capabilities and the consistency, speed, and precision demanded by modern industrial processes.
What is industrial machine vision?
Industrial machine vision refers to systems that use cameras and image processing to inspect and analyse components during manufacturing. Unlike basic presence sensors, vision systems gather complete visual information and interpret it using algorithms. The result: machines that can make decisions based on complex visual cues.
A typical vision system can:
- Capture images of parts or assemblies
- Process images to extract features, dimensions, or patterns
- Evaluate those features against pre-set criteria
- Trigger a response—such as a pass/fail signal, sorting mechanism, or data log entry
Machine vision plays a critical role in ensuring consistency, speed, and repeatability in high-volume environments where manual inspection would be too slow or error-prone. But they are also the assistant which helps the worker to create a 100% quality product, simply by supervising his steps and return an early feedback if something is wrong.
Key components of a machine vision system
Lighting and Illumination
Lighting directly impacts the quality of image capture. The wrong lighting setup can obscure defects, reduce contrast, or create reflections that interfere with detection.
Common techniques include:
- Diffuse lighting for minimizing glare on reflective surfaces
- Backlighting to produce high-contrast silhouettes for edge detection
- Structured lighting for capturing 3D surface geometry
- Directional lighting to emphasize textures or surface defects
Selecting the right lighting often determines the success of the inspection, especially when dealing with transparent, shiny, or irregular materials.
Image acquisition: cameras and optics
Camera selection depends on the nature of the inspection task. Area scan cameras work well for still images, while line scan cameras are ideal for continuous materials like rolled steel or textiles. Smart cameras combine imaging and processing in a single device, reducing system complexity.
Lenses must also be matched to the application, considering factors like:
- Field of view and resolution
- Working distance and depth of field
- The need for telecentric optics in metrology tasks
A well-configured imaging system ensures that the software receives clear, consistent inputs. The better the signal (image) – the better the result.
Image processing and analysis
Once the image is captured, processing software analyses it to extract useful information. This typically involves:
- Pre-processing to enhance image quality (noise reduction, contrast adjustment)
- Segmentation to isolate areas of interest from the background
- Feature extraction for dimensions, edges, contours, or surface characteristics
- Decision logic to classify results and output actions
Depending on the application, this processing may occur in a vision controller, embedded PC, or on-camera processor.
System communication and integration
Vision systems need to integrate seamlessly with broader automation environments. This includes:
- Triggering actions via digital I/O or fieldbus signals
- Sharing inspection results with PLCs or robots
- Logging data into MES or SCADA systems
- Communicating via industrial protocols such as EtherNet/IP, Modbus, or OPC UA
Integration is essential for traceability, process control, and closed-loop feedback systems.
Applications in industrial environments
Machine vision systems support a wide range of tasks, often replacing or augmenting manual inspection. Here are a few common examples:
Pattern matching and recognition
Used for:
- Locating parts in random orientations
- Verifying correct assembly
- Guiding robotic pick-and-place systems
Modern pattern recognition tools are robust to changes in scale, rotation, and partial obstruction or based on AI to be flexible.
Dimensional measurement
Vision-based measurement tools offer high-speed, non-contact analysis for:
- Gap and flush inspection
- Hole alignment and diameter verification
- Thread pitch analysis
- Profile matching and tolerance checks
With appropriate calibration, accuracy in the micrometer range is achievable.

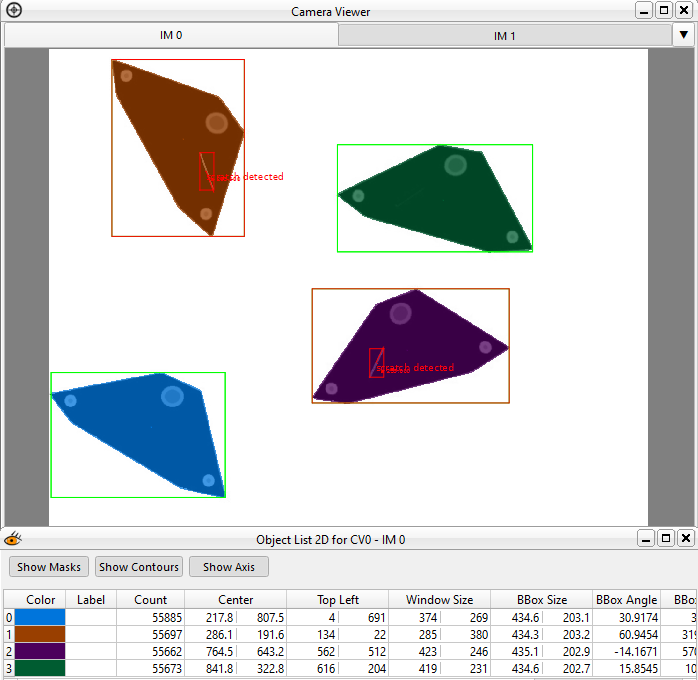

Surface and cosmetic inspection
Vision systems can detect:
- Scratches, dents, or deformation
- Coating or paint inconsistencies
- Foreign object contamination
- Texture uniformity issues
Such inspections are widely used in automotive, packaging, and consumer electronics.
Code reading and OCR
Visual systems reliably read and verify:
- 1D and 2D barcodes
- DataMatrix and QR codes
- Human-readable text via OCR e.g. MHD, Charge Numbers …
- Direct part markings, even on uneven or metallic surfaces
This enables traceability, serialization, and compliance in regulated industries.
Planning and implementation considerations
A successful machine vision project begins with clear objectives and detailed planning.
Key questions to define up front:
- What specific features or defects need detection?
- What level of accuracy is required?
- What are the production speeds and cycle times?
- What are the environmental constraints (dust, lighting, vibration)?
Feasibility testing with actual parts under real conditions is strongly recommended. It allows engineers to assess lighting challenges, optimize algorithms, and validate system performance before deployment.
Integrating vision into the production line
Implementation should align with the mechanical and digital workflow. Consider:
- How parts are presented for inspection
- Timing and synchronization with other systems
- What happens to rejected parts or failed inspections
- How results are stored, visualized, or used for process improvement
Vision systems should enhance—not disrupt—existing operations.
Ongoing maintenance and support
To maintain accuracy and reliability, machine vision systems require periodic checks:
- Cleaning of lenses and sensor windows
- Recalibration of measurement systems
- Software updates and parameter tuning
- Monitoring long-term inspection trends
Designing for maintainability from the start helps avoid performance drift over time.
Machine vision platforms also offer greater scalability and flexibility, allowing the same hardware to be reconfigured or expanded for multiple tasks. For example, modular systems such as EyeVision enable integration of various inspection tools — from basic presence checks to 3D evaluation and code reading — within a unified environment. This simplifies adaptation as production requirements evolve, without needing to overhaul the system architecture.
Final Thoughts
Machine vision has moved from niche to necessity in industrial environments. By understanding the principles and architecture behind modern vision systems, manufacturers can make informed decisions that improve productivity and reduce error rates. Whether starting with basic inspections or preparing for AI-enabled automation, the foundation is the same: clear imaging, robust processing, and seamless integration.
