LUCID ToF 3D sensor

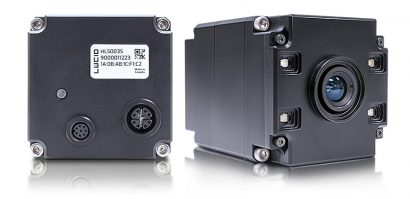

LUCID (ToF) 3D Sensor

The EyeVision 3D software supports the LUCID Helios Time-of-Flight 3D sensor.

This allows, among other things, volume measurements, workstation monitoring, 3D object recognition, and much more. An important application is also the automatic loading and unloading of boxes on pallets by a robot.

How does 3D Time-of-Flight (TOF) work?

TOF cameras use technology similar to radar and are becoming increasingly common. The integrated illumination emits infrared pulses and the sensor measures the time it takes for the light to be reflected back.

Technical data of the LUCID Helios Time of Flight 3D Sensor

SensorSony DepthSense IMX556 CMOS
Resolution0.3 MP 640 x 480 px
Frame rate30 fps

Modelle

ModellChromaLens mountGigE Vision ConnectorPower supply
HLS003S-001MonoIntegrated lens with 6 mm focal lengthM12none
HLS-BUN-US1MonoIntegrated lens with 6 mm focal lengthM12incl. NA power supply
HLS-BUN-EU1MonoIntegrated lens with 6 mm focal lengthM12incl. EU power supply
