EyeScan AT 3D sensor

The EyeScan AT 3D sensor is a high-speed and high-resolution laser triangulation sensor. It supports the EyeVision 3D software.

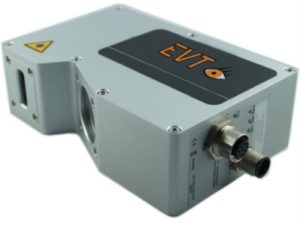

EyeScan AT 3D sensor model

(available with red, blue or green laser)

Model overview

Model

FOV
[mm]

Z-Range
[mm]

Lateral
Resolution [µm]

Height-
Resolution [µm]

Working
distance [mm]

Points
per Profile

C5-1600CS23-3030±20190,81061600
C5-20140CS23-3838±20190,81062048
C5-1600CS23-4949±20311,21061600
C5-2040CS23-6363±20311,21062048
C5-3360CS39-6767±7,5200,51723360
C5-1600CS23-7878±20492,01061600
C5-2040CS23-100100±20492,01062048
C5-3360CS30-150150±100451,43983360
C5-4090CS30-182182±125441,43984096
C5-3360CS19-248248±250743,66853360
C5-3360CS30-255255±150762,43983360
C5-1600CS30-260260±1501635,13981600
C5-4090CS19-302302±250743,66854096
C5-4090CS30-310310±150762,43984096
C5-2040CS30-330330±1501615,03982048
C5-3360CS30-406406±1501213,83983360
C5-3360CS18-420420±4001256,37423360
C5-4090CS30-495495±1501213,83984096
C5-1600CS19-500500±25031315,06851600
C5-4090CS18-510510±4001256,37424096
C5-2040CS19-640640±25031315,06852048
C5-3360CS18-691691±40020610,47423360
C5-1600CS18-825825±40051626,17421600
C5-4090CS18-842842±40020610,47424096
C5-2040CS18-10151015±40051826,27422048
C5-2040CS14-160160±807851972048

(examples, more on request)

Technical Data

Profile rateup to 25000 Hz (depending on the model)
Profile resolutionup to 4096 points / profile (depending on the model)
InterfacesGigE Vision / GenICam
Dynamic range90 dB (with HDR-3D)
connectorM12
Protection classIP67
Laser protection class2M, 3R, 3B
Sensor algorythmsMAX, TRSH, COG, FIR-PEAK
Digitale IOsOpto-isolierte Inputs (2x) / Outputs (2x),
Trigger, Encoder (RS442)
Power supply10 – 24V DC
PC requirementsGigabit Ethernet NIC
